In the manufacturing industry, efficiency, precision, and safety in material handling are essential for meeting production goals and maintaining competitiveness. Among the many lifting solutions available, medium capacity overhead cranes with capacities ranging from 20 to 50 tons have become the backbone of many manufacturing plants worldwide. These cranes strike a balance between heavy-duty lifting and operational flexibility, making them ideal for handling large components, machinery, and raw materials that are too heavy for light-duty systems but do not require ultra-high-capacity cranes.
This article explores the applications, advantages, design considerations, and cost-effectiveness of 20 to 50 ton overhead cranes, along with guidance for choosing the right solution for manufacturing plants.
The Role of Medium Capacity Overhead Cranes in Manufacturing
Manufacturing operations often involve moving bulky loads such as steel plates, machine parts, dies, molds, or assembled components. Traditional material handling methods like forklifts are not sufficient when loads exceed 20 tons. At the same time, ultra-heavy cranes designed for 100+ tons may be unnecessary and cost-inefficient for many factories.
This is where 20–50 ton overhead cranes fit perfectly. They are designed to:
-
Handle moderately heavy loads efficiently without overengineering.
-
Provide safe and reliable lifting for machinery, molds, turbines, or heavy materials.
-
Operate in production lines where medium-sized but frequent lifts are required.
By offering a middle ground, medium capacity cranes allow manufacturers to streamline material flow while maintaining cost-effectiveness.
Applications in Manufacturing Plants
1. Metal Fabrication and Steel Processing
Medium capacity cranes are widely used to move steel beams, coils, plates, and fabricated assemblies. With their ability to span wide areas in workshops, they improve workflow and reduce downtime during heavy material transfers.
2. Machinery and Equipment Manufacturing

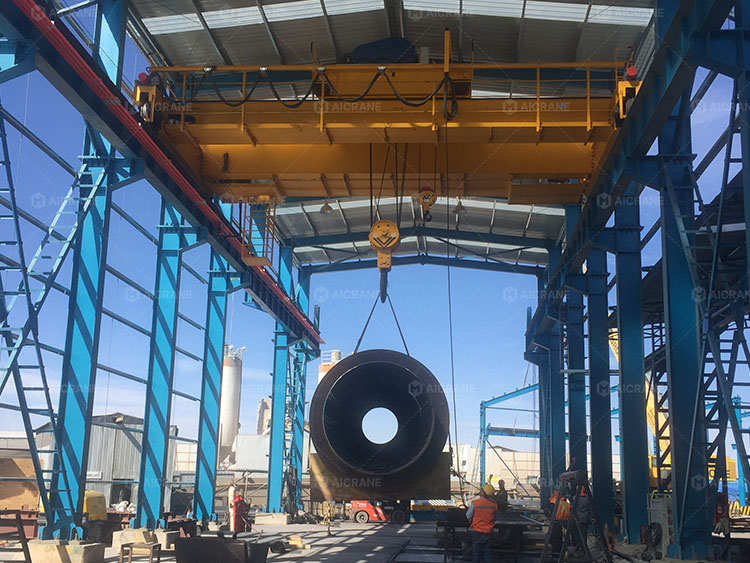

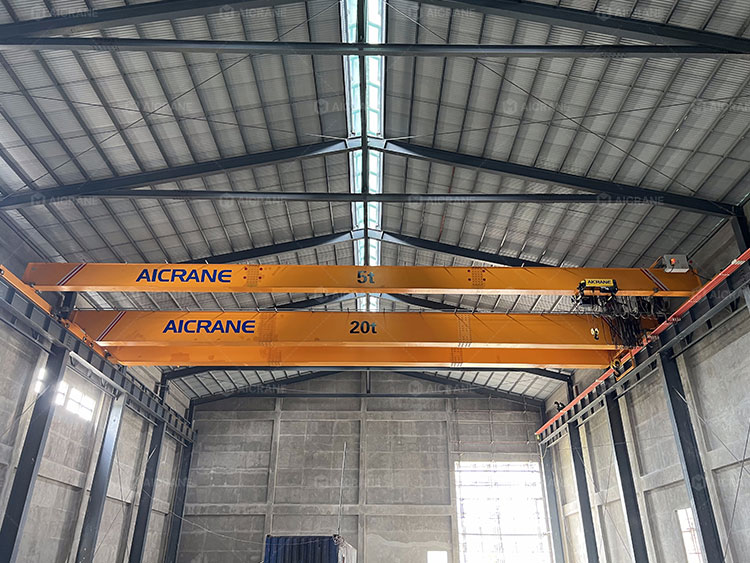

Factories producing turbines, transformers, or industrial machines rely on 20 ton overhead crane to 50 ton overhead crane for moving partially assembled units and placing them into machining centers or assembly bays.
3. Automotive and Aerospace Industry
In automotive production, overhead cranes lift molds, dies, and engine blocks. In aerospace, they are critical for positioning medium-weight fuselage sections or wings during assembly.
4. Power Generation and Energy Sector
Manufacturers of power generation equipment such as boilers, turbines, and generators utilize medium capacity cranes to handle components during production and quality testing.
5. Precast Concrete and Construction Materials
Manufacturing plants producing precast concrete elements often deploy 20–50 ton cranes to move heavy panels, beams, and girders safely.
These diverse applications demonstrate the versatility of medium capacity overhead cranes across different industries.
Advantages of 20–50 Ton Overhead Cranes
1. Cost-Effectiveness
Compared with larger cranes, medium capacity cranes are more affordable in terms of initial investment, installation, and operational costs. For many plants, they provide the perfect balance between lifting capacity and budget.
2. Space Utilization
Overhead cranes operate above the ground, maximizing floor space usage. This is especially beneficial in crowded workshops where forklifts or mobile cranes would obstruct movement.
3. Enhanced Safety
By reducing the need for manual handling or unsafe lifting methods, medium capacity cranes significantly minimize workplace accidents. Modern models include overload protection, emergency stop systems, and anti-sway technology.
4. Flexibility and Customization
These cranes can be designed as single girder or double girder overhead crane configurations, depending on the plant layout and lifting requirements. Features such as adjustable speeds, precision controls, and automation options further enhance flexibility.
5. Reliability for Repetitive Lifts
Manufacturing processes often require repeated handling of medium-weight loads. Overhead cranes ensure consistent performance, reducing fatigue and errors compared to manual handling.
Design and Technical Considerations
When selecting a 20–50 ton overhead crane, manufacturers must evaluate several factors:
-
Type of Crane:
-
Single girder cranes are simpler and cost-effective but usually support lighter loads.
-
Double girder cranes are preferred for 20–50 ton capacities due to their strength, durability, and higher lifting heights.
-
-
Span and Lifting Height: The span (distance between rails) and height should match the workshop dimensions and load requirements.
-
Work Duty Class: The duty cycle, defined by standards such as FEM or ISO, determines whether the crane is suitable for light, moderate, or heavy usage.
-
Control Systems: Options include pendant control, wireless remote control, or cabin operation. Many modern cranes integrate frequency inverters for smooth motion.
-
Safety Features: Overload limiters, end stops, emergency brakes, and anti-sway mechanisms are critical for accident prevention.
-
Power Supply and Efficiency: Depending on usage frequency, plants can choose energy-efficient electric drives or regenerative braking systems to reduce energy consumption.
Cost and Investment Perspective
The cost of a medium capacity overhead crane for sale depends on specifications such as span, lifting height, work duty, and customization. Generally, these cranes are a cost-effective solution for manufacturing plants because:
-
They require a lower capital investment compared with 100+ ton cranes.
-
Maintenance and spare parts are more affordable.
-
Their versatility makes them suitable for multiple lifting tasks, maximizing return on investment.
Additionally, modern suppliers offer financing, leasing, or phased payment solutions, making them accessible even for small and medium-sized manufacturing firms.
Installation and Maintenance Solutions
Proper installation and maintenance are critical for the performance and longevity of medium capacity cranes.
-
Installation: Professional installation ensures the crane is aligned correctly with rails and power systems. Plants can choose between on-site installation teams or remote online guidance provided by suppliers.
-
Maintenance: Regular inspections, lubrication, and part replacements reduce downtime. Predictive maintenance solutions using sensors and IoT are increasingly popular, allowing plants to anticipate failures before they occur.
Choosing the Right Supplier
Selecting a reliable overhead crane supplier is as important as choosing the right crane. Manufacturers should consider:
-
Proven experience in delivering 20–50 ton crane solutions.
-
Custom design capabilities tailored to specific plant needs.
-
Comprehensive after-sales support, including spare parts, training, and online/offline maintenance services.
-
Competitive pricing with transparent cost breakdowns.
Working with a trusted supplier ensures not only a quality crane but also long-term operational support.
Conclusion
Medium capacity overhead cranes in the 20–50 ton range are indispensable for manufacturing plants that handle moderately heavy loads. They offer an optimal blend of performance, safety, and cost-efficiency, making them versatile across industries like steel fabrication, machinery manufacturing, automotive, aerospace, and precast concrete production.
With the right design, proper installation, and regular maintenance, these cranes can dramatically improve workflow, enhance worker safety, and deliver long-term value to manufacturing operations. For plant managers seeking a lifting solution that balances power and practicality, medium capacity overhead cranes are a proven choice.
